LED導光板刻線機:亞克力板切割機參數
2019-09-25 15:46:33
LED導光板刻線機:導光板刻線機,亞克力切割機,亞克力板切割機,導光板快速刻線,取代傳統的絲印網點,采用高轉速銑刀電機,中瑞技術合作產品,填補國內空白產品.
功能特點|Functions and special feature (fill domestic blank products)
中瑞技術合作產品，采用高轉速（60000轉/分鐘）銑刀電機。X或Y方向鎢鋼刀高速刻線
A product of Sino-Swiss technologies, servomotors are imported from Switzerland. It runs at the rotary speed up to 60,000rpm.Tungsten steel knife high-speed scribed line.
采用意大利AMT直線導軌作為傳動軌道，保證機器高速運轉平穩且精度高。
AMT straight-line guide rails from Italy are used as drive rails to ensure the machines will run in a steady manner at utmost accuracy.
采用日本松下電機控制銑刀上下運動，可隨意控制銑刀的下刀深度，對于有特殊要求的溝槽深度切割，即可由電腦控制切割任意深度。
Using Servo-motor from Panasonic, to control up, down. With computerized controls the depth of engraving, it enable the control of width and depth of the lines precisely according to the need users.
機器有三個功能頭：高速銑刀頭、鎢鋼刀頭。可切割和刻線15mm以下的導光板，鎢鋼刀頭可根據材料的高低自動調節深淺度。
The machine has three function heads: high speed milling router, Tungsten steel knife, to enable engraving and cut maximum 15mm acrylic board. Tungsten steel knife can be adjust automatically to control the size of groove, engraving lines.
整機數據線全部采用德國進口。
Date wire all imported from Germany.
機器臺面采用美國進口纖維板，透氣性好，耐用，不易變形。
Table mat are imported from USA, the fiber board are durable, with good, permeability, very stable in thickness and shape.
由最穩定的以太網口用網線傳輸數據，并可直接連接AI軟件以及Autocad, Coral draw等所有軟件輸出
Date is transfer by Ethernet, the most stable method. File can be exported to machine directly from Adobe Illustrator, Coral draw without conversion to maintain maximum accuracy.
設有安全裝置（人手進入紅外線范圍以 內，機器自動停止）。
Ultra Red Light sensor are equipped for user friendly and safety(machine automatically stop when perator's hand into the working area).
速度快，最快每秒可達到1500mm。
Machine can run at the maximum speed of up to 1500mm per second.
直接在機器上控制所有微調功能，包括圖檔自動優化功能，無需另配多一臺電腦。
All fine tuning can be made with control penal on the machine.
可由紅外線激光燈定位切割任意新起點，快速而又準確。
Red Ultra-light positioning device for printed work can be cut accurately ineasy and quickest way.
拓荒牛LED導光板刻線機技術參數標準表

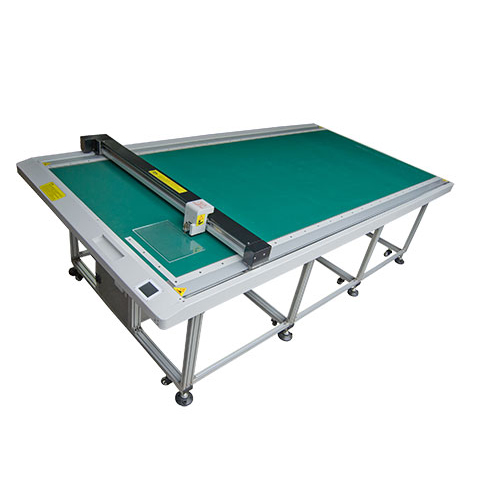

NewBull LED light guide plate scribed line machine
功能特點|Functions and special feature (fill domestic blank products)
中瑞技術合作產品，采用高轉速（60000轉/分鐘）銑刀電機。X或Y方向鎢鋼刀高速刻線
A product of Sino-Swiss technologies, servomotors are imported from Switzerland. It runs at the rotary speed up to 60,000rpm.Tungsten steel knife high-speed scribed line.
采用意大利AMT直線導軌作為傳動軌道，保證機器高速運轉平穩且精度高。
AMT straight-line guide rails from Italy are used as drive rails to ensure the machines will run in a steady manner at utmost accuracy.
采用日本松下電機控制銑刀上下運動，可隨意控制銑刀的下刀深度，對于有特殊要求的溝槽深度切割，即可由電腦控制切割任意深度。
Using Servo-motor from Panasonic, to control up, down. With computerized controls the depth of engraving, it enable the control of width and depth of the lines precisely according to the need users.
機器有三個功能頭：高速銑刀頭、鎢鋼刀頭。可切割和刻線15mm以下的導光板，鎢鋼刀頭可根據材料的高低自動調節深淺度。
The machine has three function heads: high speed milling router, Tungsten steel knife, to enable engraving and cut maximum 15mm acrylic board. Tungsten steel knife can be adjust automatically to control the size of groove, engraving lines.
整機數據線全部采用德國進口。
Date wire all imported from Germany.
機器臺面采用美國進口纖維板，透氣性好，耐用，不易變形。
Table mat are imported from USA, the fiber board are durable, with good, permeability, very stable in thickness and shape.
由最穩定的以太網口用網線傳輸數據，并可直接連接AI軟件以及Autocad, Coral draw等所有軟件輸出
Date is transfer by Ethernet, the most stable method. File can be exported to machine directly from Adobe Illustrator, Coral draw without conversion to maintain maximum accuracy.
設有安全裝置（人手進入紅外線范圍以 內，機器自動停止）。
Ultra Red Light sensor are equipped for user friendly and safety(machine automatically stop when perator's hand into the working area).
速度快，最快每秒可達到1500mm。
Machine can run at the maximum speed of up to 1500mm per second.
直接在機器上控制所有微調功能，包括圖檔自動優化功能，無需另配多一臺電腦。
All fine tuning can be made with control penal on the machine.
可由紅外線激光燈定位切割任意新起點，快速而又準確。
Red Ultra-light positioning device for printed work can be cut accurately ineasy and quickest way.
拓荒牛LED導光板刻線機技術參數標準表
NewBull LED light guide plate scribed line machine
| 技術參數/型號 | NB-1209L | NB-2513L | NB-3015L | NB-2513L10 | NB-3020L10 |
| Technical information/model | |||||
| 工作特性 | 電腦操作與切割機同時進行，快速完成數據傳輸，可連續使用 | ||||
| Operation properties | Computer operation and cutting machines can be used simultaneously for quick data transmission capable of continuous operations | ||||
| 切割速度 | 最快可達2700mm/s | ||||
| Cutting speed | Maxi 1500mm/s | ||||
| 切割厚度 | ≦15mm | ||||
| Cutting Thickness | |||||
| 切割材料 | 可切割15mm以下的LED導光板 | ||||
| Cut materials | LED acrylic board,below 15mm | ||||
| 筆數 | 8組不同的筆畫：半刀、全刀切割、X和Y方向鎢鋼刀高速刻線 | ||||
| Number of pens | 8 different groups of strokes,half Cut,full Cut,Tungsten steel knife high-speed scribed line | ||||
| 定位方式 | 紅外線激光燈 | ||||
| Positioning device | Red Ultra-Light | ||||
| 固定紙的方式 | 真空吸附和氣壓機械固定 | ||||
| Method for fixing paper | Vacuum absorption | ||||
| 切割精度 | ±0.2mm | ||||
| Cutting tolerance | |||||
| 重復精度 | ≦0.05mm | ||||
| Repeat accuracy | |||||
| 切割圓形直徑 | ≧5mm diameter | ||||
| Minimum circle | |||||
| 傳輸接口 | 以太網口 | ||||
| Transmission interface | Ethernet port | ||||
| 兼容軟件格式 | AI軟件、Autocad、Coraldraw和所有的盒型設計軟件都可以直接輸出，無需轉換，且?guī)ё詣?dòng)優化 | ||||
| Format compatible | Compatibility format AI software,Autocad,Coraldraw and all box software | ||||
| 指令系統 | HP-GL和GP-GL | ||||
| Direcive system | HP-GL and GP-GL | ||||
| 數控面板 | 液晶顯示和觸點按鍵 | ||||
| Digital control panel | Liquid crystal display and contact button | ||||
| 傳動材料 | 直線導軌，進口同步帶 | ||||
| Transmission materials | Straight-line guide rails and imported synchronous belts | ||||
| 工作電壓和功率 | 交流220V 380V ±10%，50HZ；L系列功率2kw,XL系列功率10kw；保險絲規格6A | ||||
| Supply voltage | AC 220V 380V ±10%，50HZ | ||||
| 振動刀頭 | 銑刀頭電機每分鐘60000轉 | ||||
| Vibration blade | Vibration cutter head motor at 60000rpm | ||||
| 切割面積 | 1200*900mm | 2500*1300mm | 3000*1500mm | 2500*1300mm | 3000*2000mm |
| Cutting area | |||||
| 外觀尺寸 | 1650*1280*970mm | 2950*1680*970mm | 3450*1880*970mm | 3300*1990*1200mm | 3800*2690*1200mm |
